Engineering for defense and homeland security
Precision mechanical parts for defense, security and UAV
From high-pressure housings and waterproof enclosures to drone payload and recovery mechanisms — mechanical design, CNC machining, injection molding, surface finishing and volume production — we provide professional design and precision mechanism development for the defense and security industries.
All of our equipment, production and assembly are in Taiwan — nothing is outsourced to or handled by any country of security concern.
01 / 06 · Defense
Flat drone parachute module
D1 series derivative | Concept design: a horizontal gas source and broad, shallow piston integrate UAV parachute ejection, guidance and mounting.
D1F
- 01Membrane lid and separate guide plate
- 02Parachute tray and shallow piston
- 03Chamber wall, seals and guide bands
- 04Base passages, horizontal gas source and mounting
Key specs
- Design status
- Complete concept CAD; pressure containment and deployment not validated
- Nominal envelope
- 215 × 244 × 105 mm (CAD envelope)
- Ejection mechanism
- Ø160 mm shallow piston; 40 mm stroke and 6 mm reserved buffer space
- Gas layout
- Horizontal small high-pressure cylinder, single normally closed main valve, short base passages
D1F installation and recovery: concept composite
The foreground shows installation; the background illustrates a separate recovery stage. This AI composite references our own CAD render. The aircraft, canopy and mounting are conceptual, not a flight photograph or deployment validation.
02 / 06 · Security

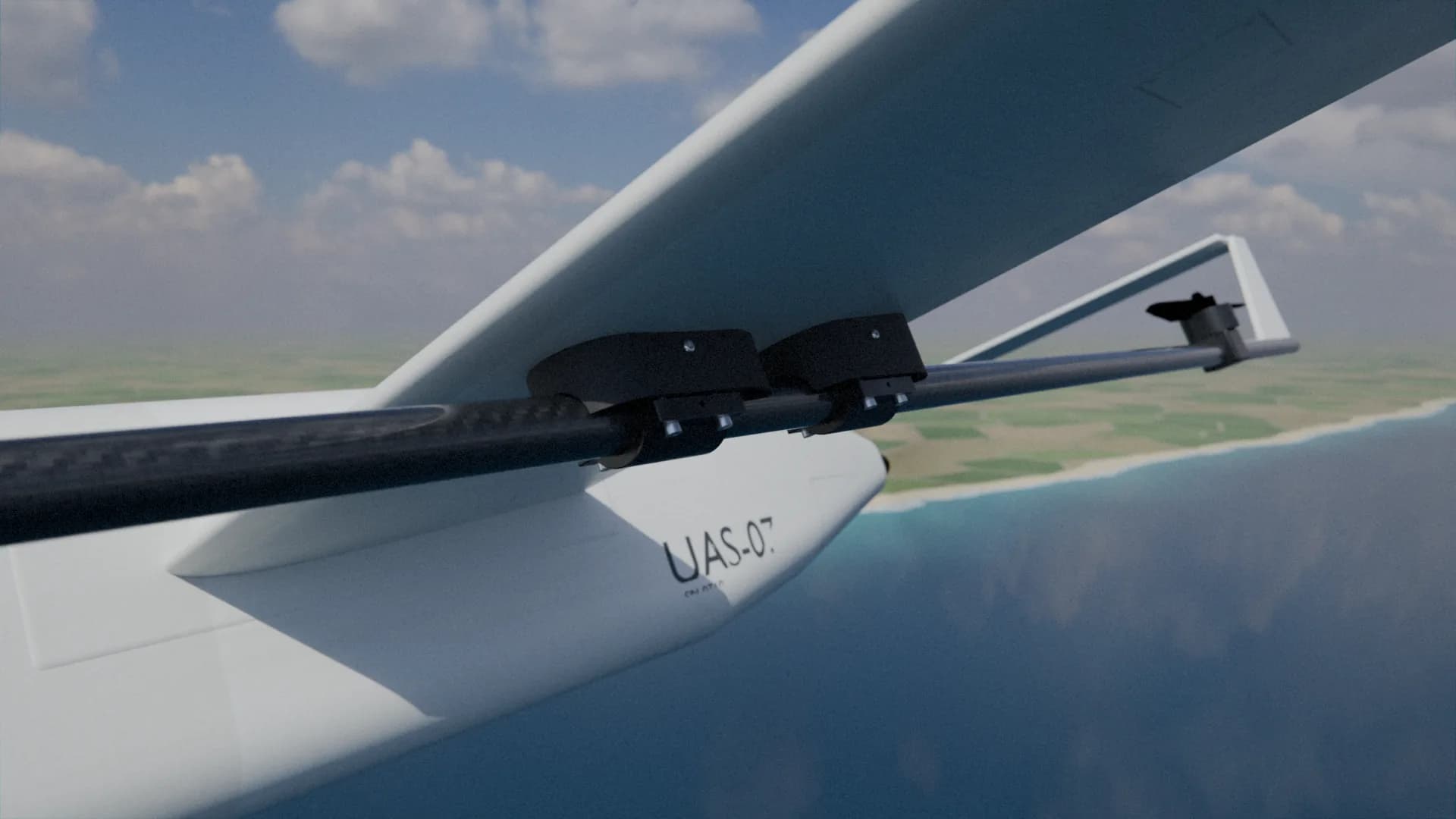

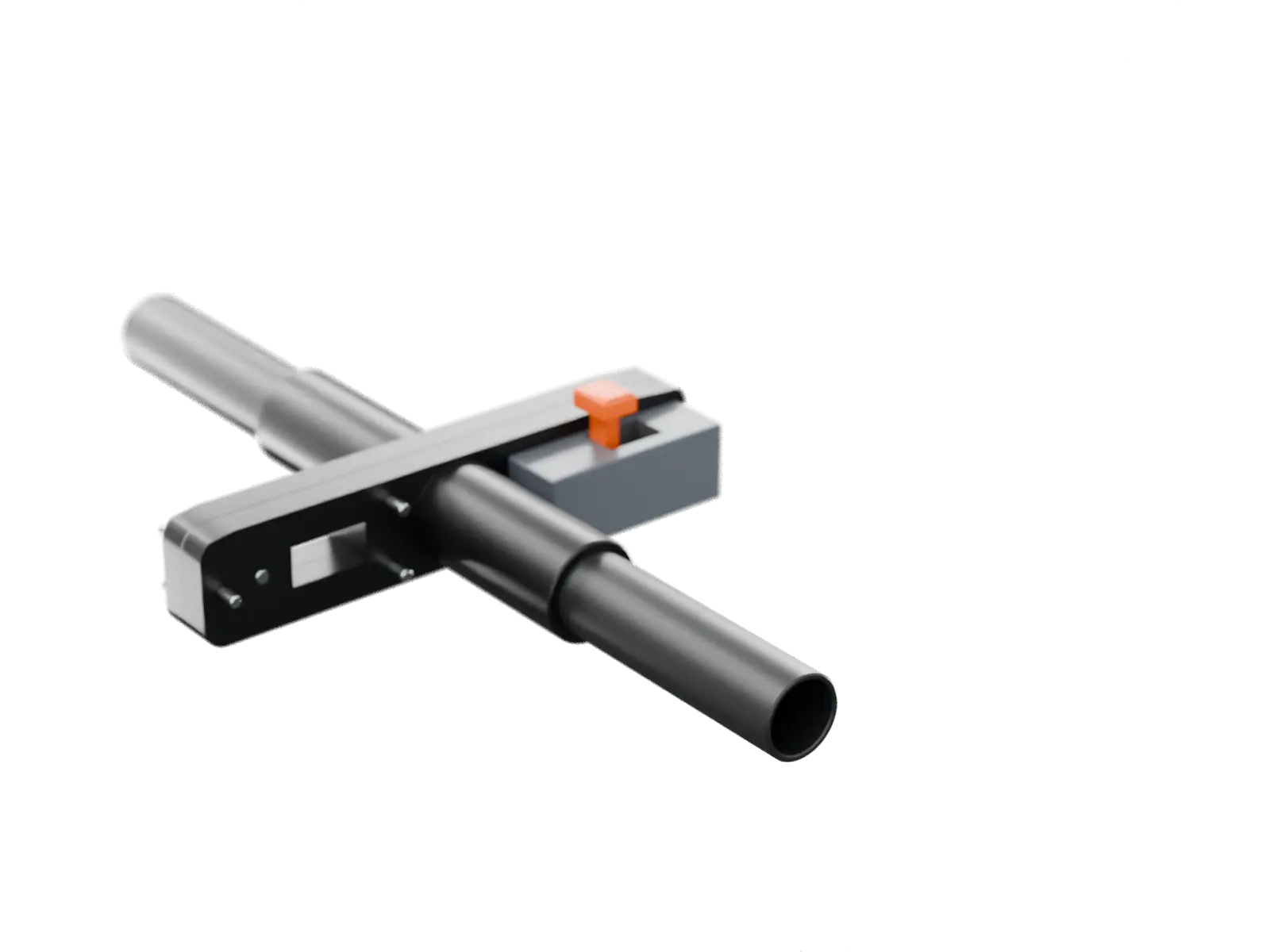

VTOL boom clamps and wing-root quick release
Boom mounts for a VTOL fixed-wing, plus a tool-free wing quick-release mechanism.
D5
- 01Pull lever and latch spring
- 02Latch housing
- 03Wing-root plates and locating pins
- 04Carbon spar tube
Key specs
- Material
- 7075-T6 hard anodized, PA66-GF30 fairing, SUS 316 locating pins, hardened SUS 440C bushings
- Boom
- Ø25 carbon tube, anti-rotation set screw
- Quick release
- Spring latch engages automatically, lever to release
- Adaptable
- Boom diameter, airfoil, latch position
03 / 06 · UAV

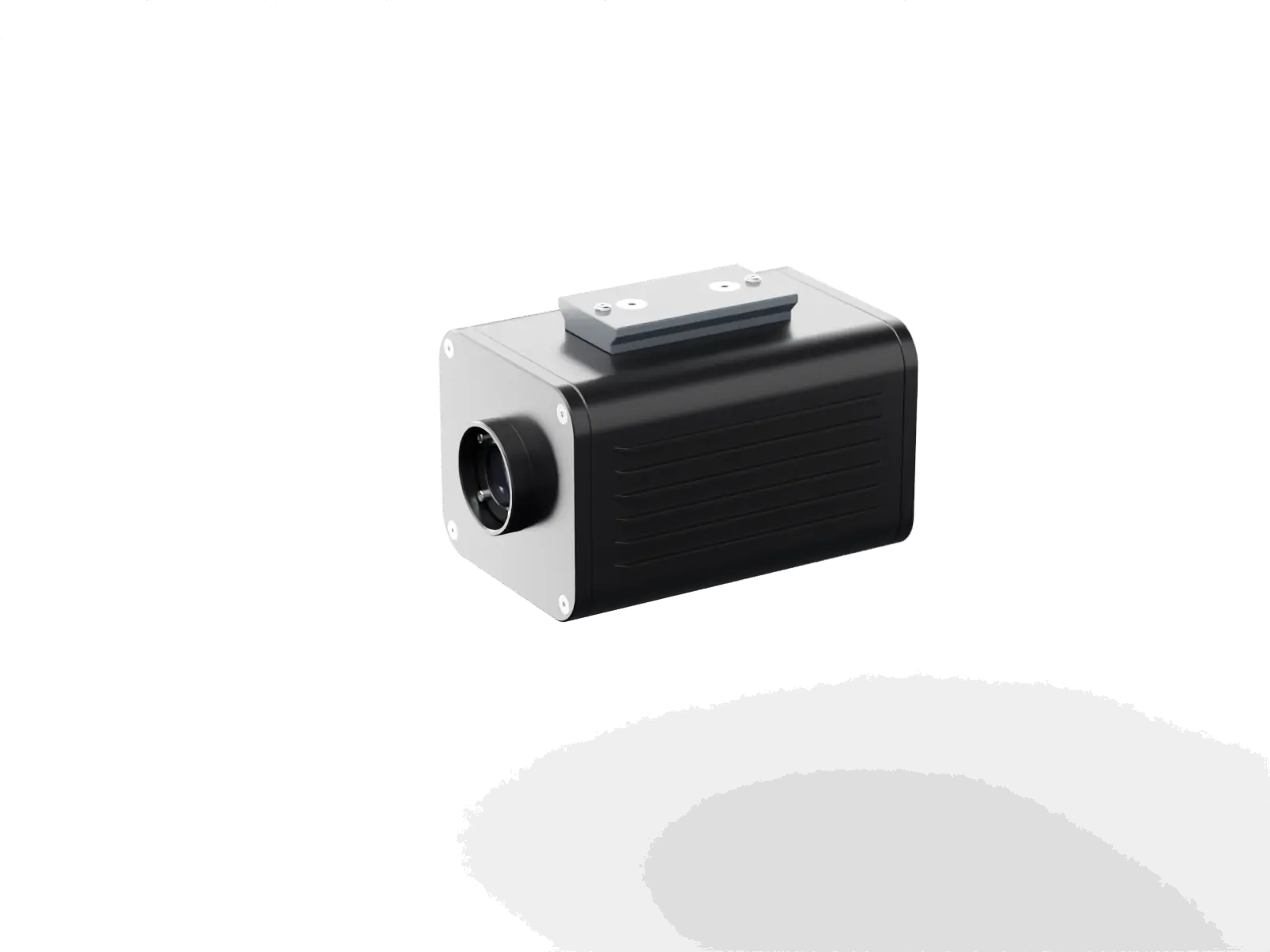

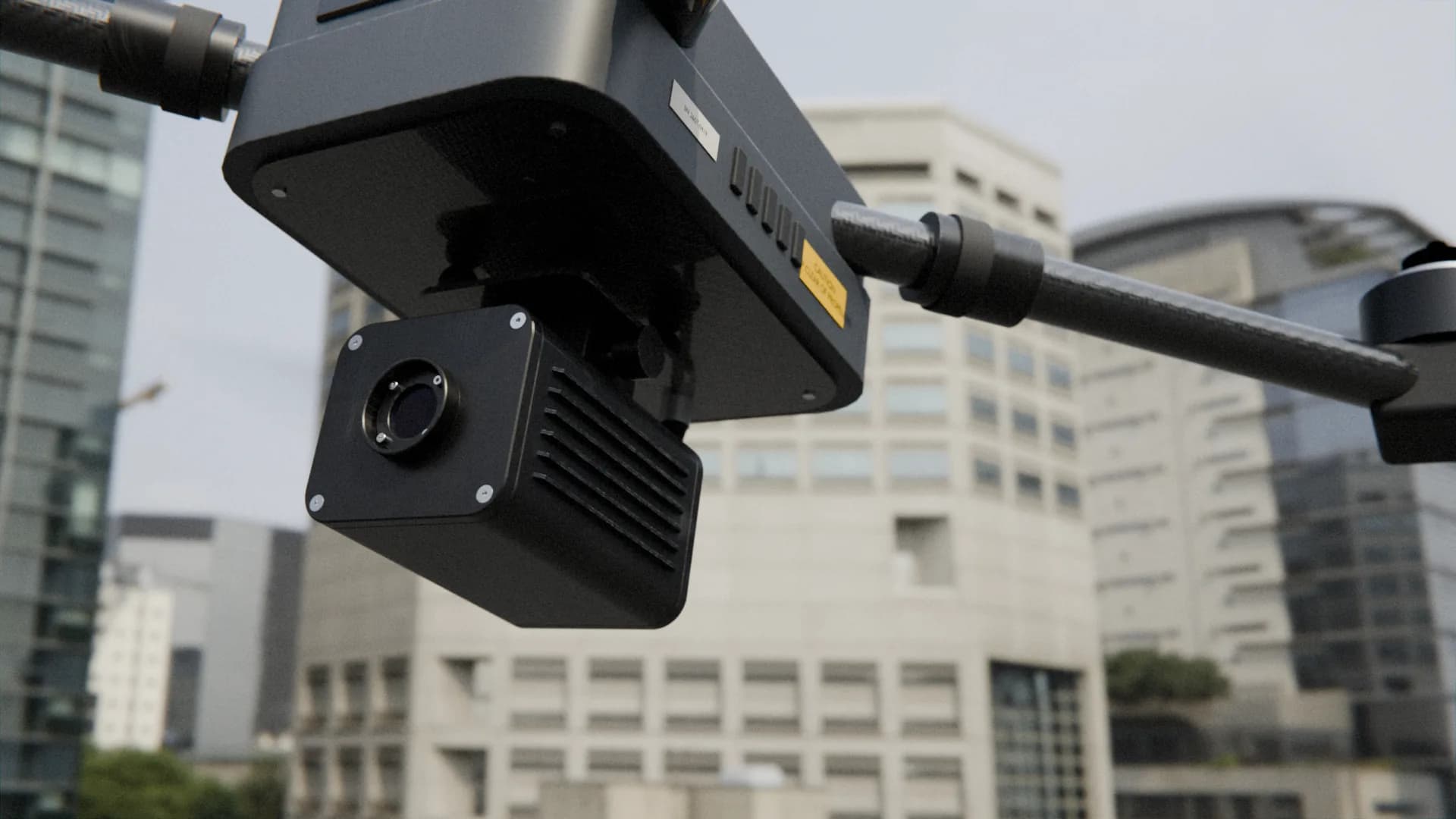

Modular payload pod
One pod body with interchangeable front covers for a thermal camera, LiDAR, gas sensor or other payloads.
D2
- 01Arca-Swiss dovetail
- 02Front and rear covers with one-piece silicone seals
- 03Front window (germanium on the thermal version)
- 04Internal sensor mounting plate
Key specs
- Material
- 6061-T6 hard-anodized body, germanium window, IR-transmissive PC window, silicone seals
- Mounting
- Arca-Swiss compatible dovetail quick release
- Front covers
- Thermal, LiDAR and gas sensing, expandable
- Adaptable
- Body length, front window, internal mounting plate
04 / 06 · Subsea & Marine

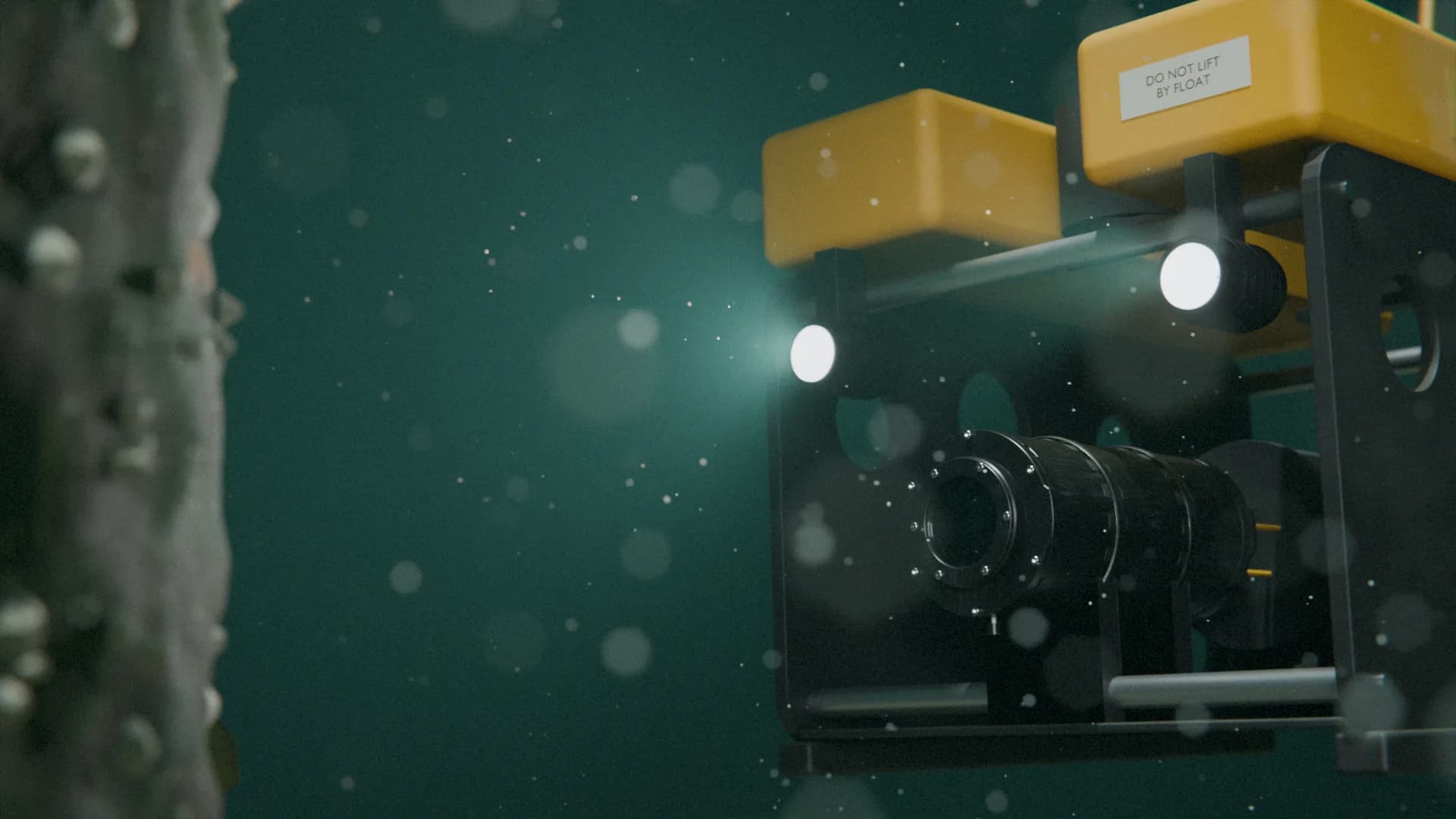

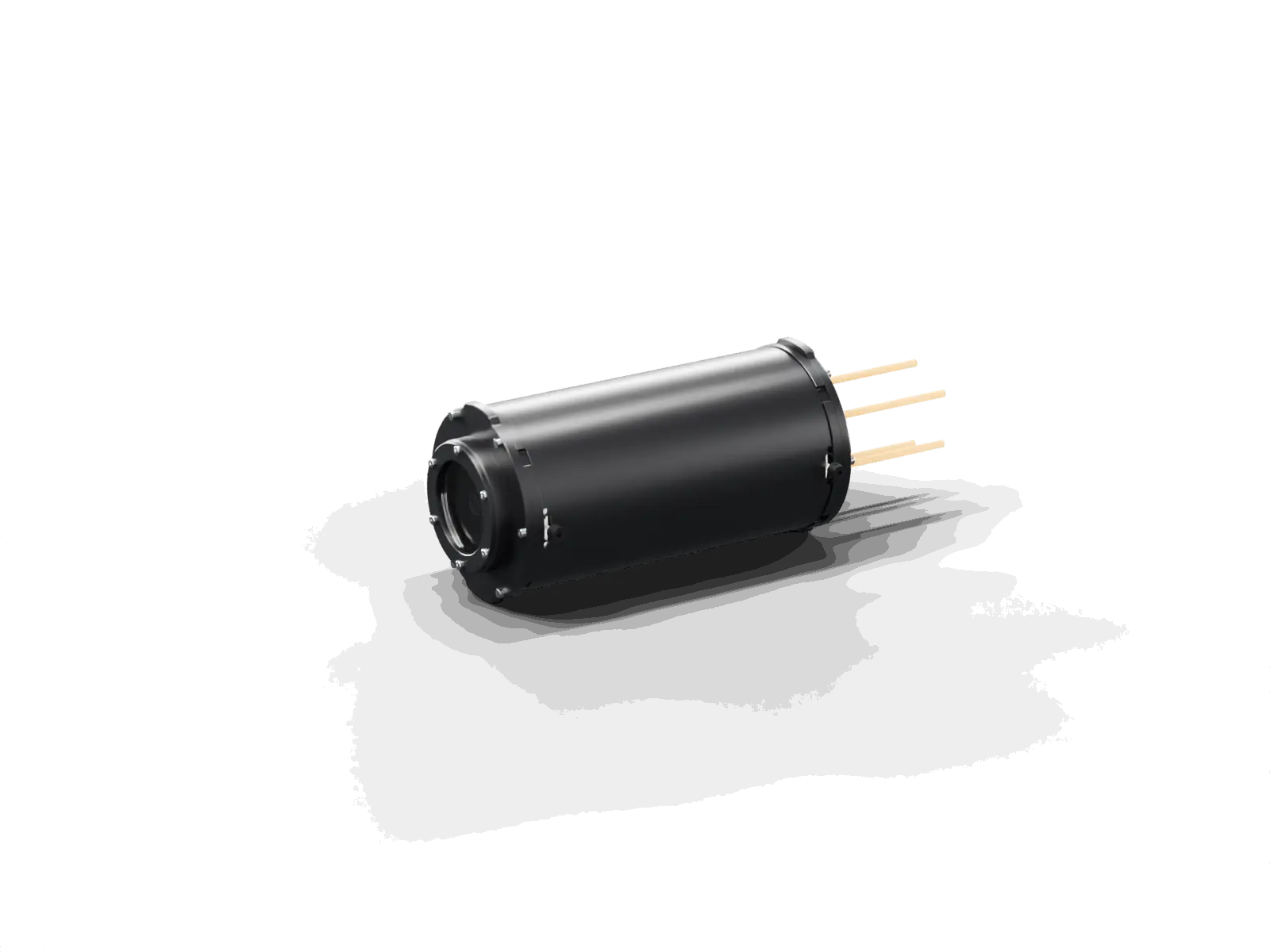

ROV camera pod
The front of the pressure housing can take an optical window, with room inside for a board camera or other compatible modules.
S1B
- 01Retaining ring and acrylic window
- 02Face O-ring and window cap
- 03Lens plate and camera module
- 04Rear end cap and penetrators
Key specs
- Material
- 6061-T6 hard-anodized aluminum, optical-grade cast acrylic window, SUS 316 screws
- Process
- CNC, optical polishing and stress-relief annealing of the window
- Interior
- Lens mounting plate, standoffs, cable pass-through
- Adaptable
- Window material (acrylic, tempered glass, sapphire), aperture, camera interface
05 / 06 · Industrial

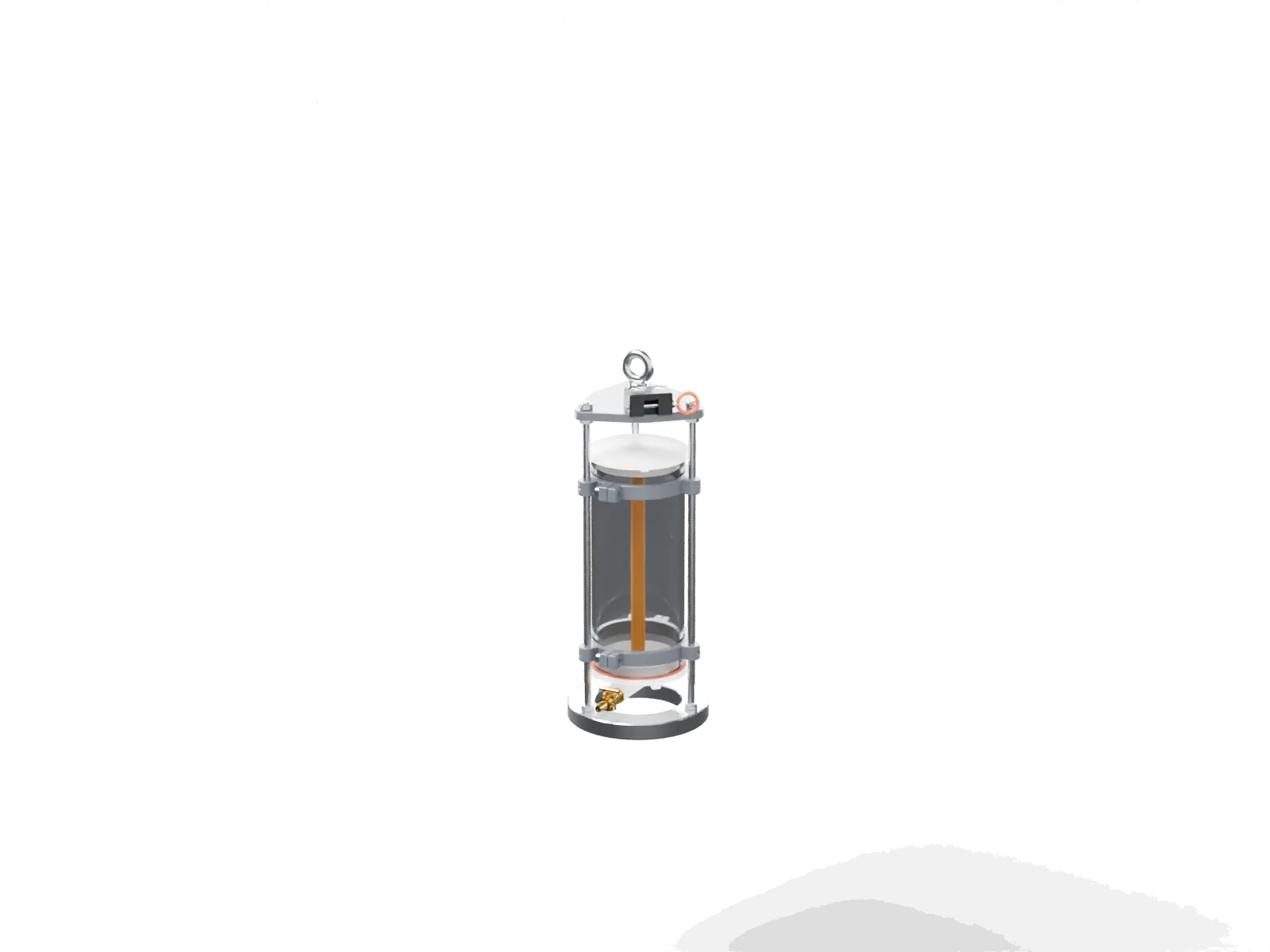

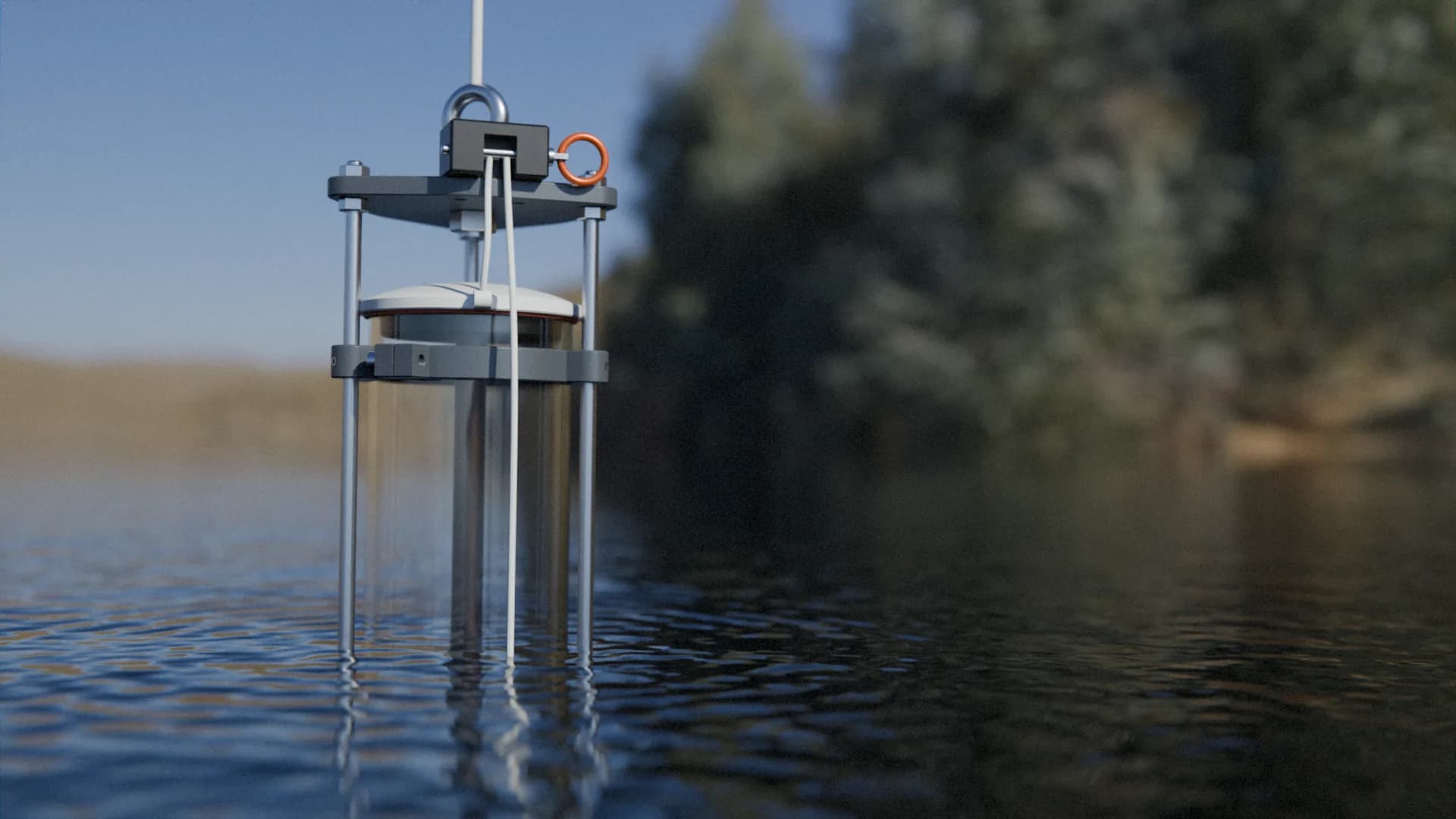

Drone water sampler
Lowered into the water beneath a drone, it seals a 430 mL water sample at the chosen depth.
D3
- 01Upper and lower POM end caps
- 02Silicone gaskets and drain valve
- 03Clear PC sample tube
- 04SUS 316 frame and weight
Key specs
- Material
- Clear PC sample tube, POM end caps, silicone gaskets, SUS 316 frame and weight
- Volume
- 430 mL
- Sampling
- Drain valve on the lower cap, straight into a sample bottle
- Adaptable
- Tube diameter, volume, trigger method
06 / 06 · In production
Dive computer
In productionA wrist-worn dive computer rated to 100 m with real-time decompression tracking — in production and in service with maritime and underwater professionals.
W1
- 01Bezel, lens and display module
- 02Main board and GPS antenna
- 03Rechargeable lithium battery
- 04Case, buttons and charging contacts
Key specs
- Water resistance
- 100 m
- Functions
- Decompression tracking, GPS entry and exit points, Bluetooth dive-log transfer
- Material
- Black reinforced engineering plastic, glass lens, silicone strap
- Power
- Rechargeable lithium battery, contact charging on the back
Concept · Underwater gliders
Underwater Reconnaissance Gliders and Acoustic Identification Module
Complete concept designs for three underwater reconnaissance gliders and a vessel acoustic identification module: 3D layout, buoyancy engine, attitude control and navigation architecture, with rotating views, exploded views and simulations. Figures are model-based estimates, not yet validated in a tank or at sea.
G1
G1 Shallow-Water Reconnaissance Glider
Long, quiet listening near shore and on the continental shelf: low cost, deployable in numbers
G2
G2 Deep-Water Endurance Glider
Months of passive acoustic monitoring in deep offshore water: low-drag fairing, no moving control surfaces outside
G3
G3 Hybrid-Propulsion Flying-Wing Glider
Seabed and near-bottom reconnaissance: glide to save energy in transit, then run thrusters at constant speed and altitude for imaging
Acoustic
Underwater vessel acoustic identification
Decide from a hydrophone recording which known vessel it is, or that it is none of them. Try it right in your browser.
More designs
More designs
These are our own designs too. Size, material and interfaces can all be adapted to your needs.
S1 · Defense / Subsea & Marine / Industrial
4-inch ROV pressure housing
A cylindrical pressure housing for underwater robots and sensors, with flanges, end caps and penetrators designed as one system.
S1B-L · Subsea & Marine / Industrial
ROV camera pod lighting kit
Clamps two underwater lights to the sides of the camera pod, adjustable in pitch and toe-in.
S3 · Security / Industrial
Bullet camera housing
An outdoor bullet housing for surveillance cameras, with sunshield and adjustable wall bracket.
S3B · Defense / Security
Turret camera housing
Mounts on a ceiling or wall, with horizontal pan and vertical tilt.

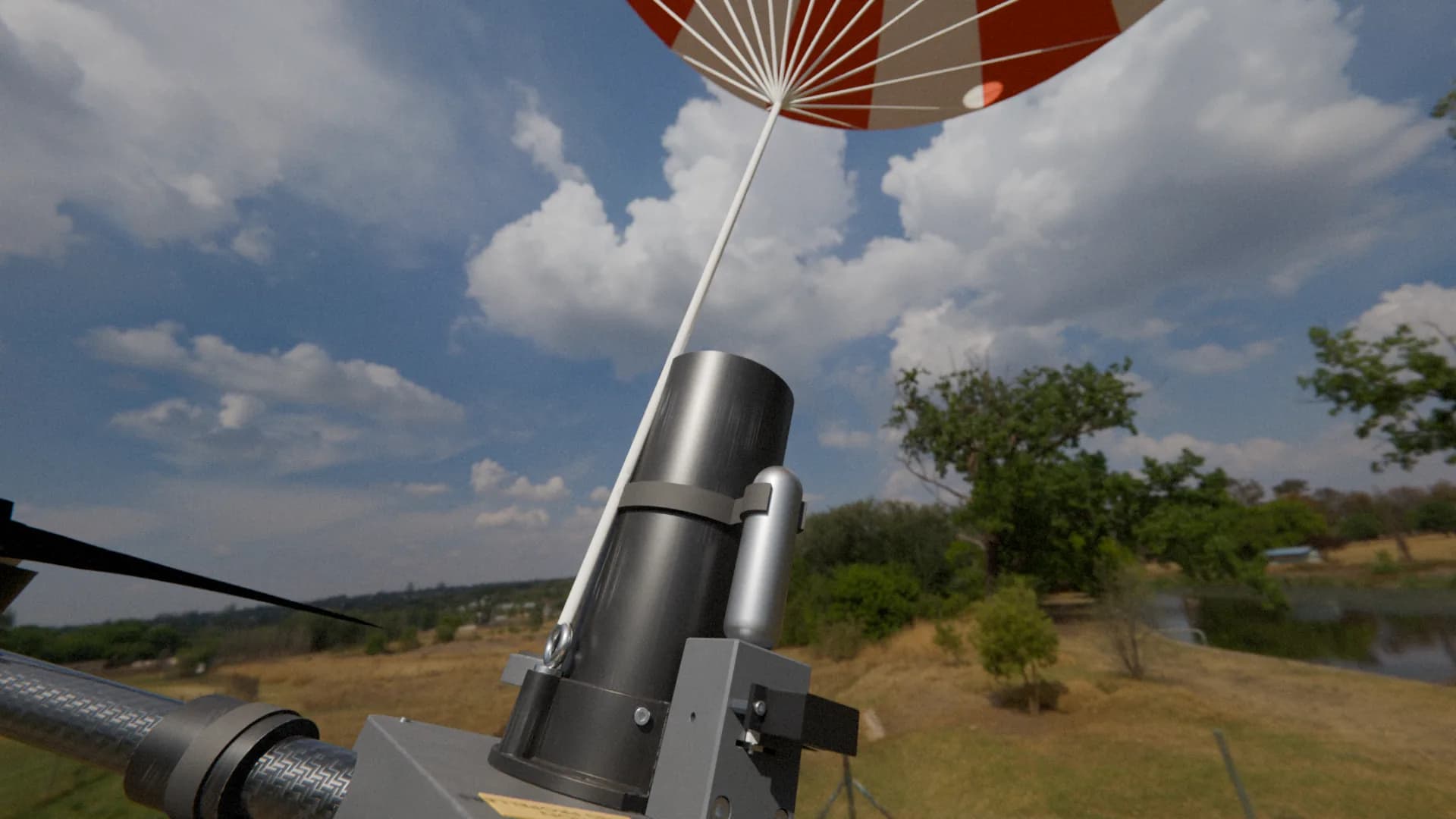

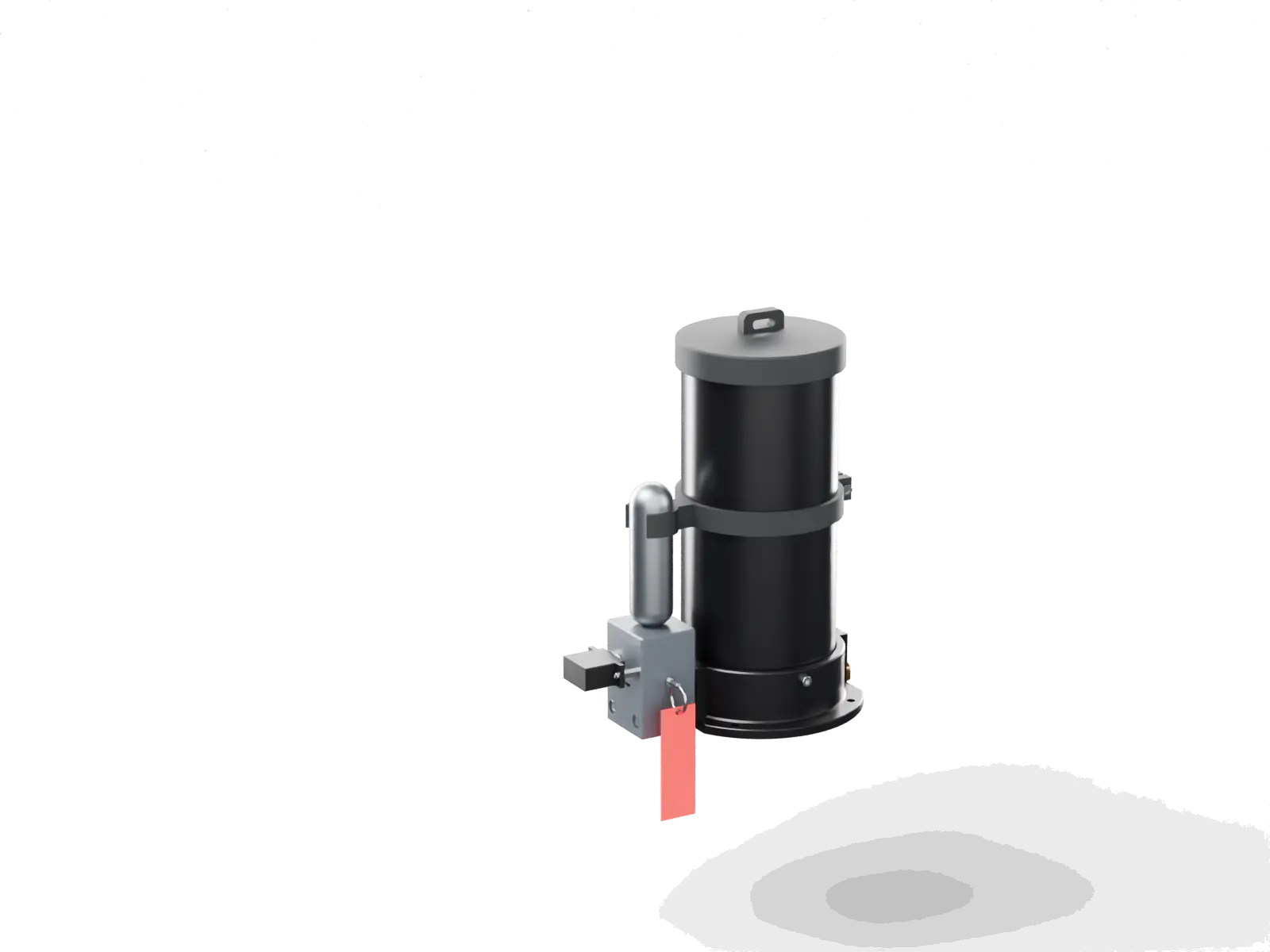

D1 · Defense / UAV
Drone parachute launcher
A parachute recovery system that uses a small high-pressure gas cartridge to push out the parachute pack. The pressure can be tuned to the payload and ejection requirements.
D4 · Defense / UAV / Subsea & Marine
Drone float kit
Water take-off and landing floats for multirotors, with four quick-release pins for fast assembly.
D6 · UAV / Industrial
Carbon tube hardware
Connectors, clamps, end caps and weights for the carbon tubes used on multirotors and fixed-wings.
Process
From design to production
- 01
Design
Mechanical design for the application and environment — sealing, cooling, mounting and service access — delivered as 3D models and drawings.
- 02
Prototype
CNC and 3D-printed prototypes to check fit, assembly and appearance.
- 03
Test
Pressure, water, vibration or salt-spray testing as required. Only tested results go into the specification.
- 04
Production
Tooling, finishing and assembly, with inspection before shipment and dimensional reports on request.
Precision parts
Precision parts
Our photographed products: hoses, adapters, splitters and pressure gauge assemblies. Browse this collection and request a quote.
Browse this collection27 parts →Have a drawing or a requirement?
Tell us the application and size, or send a drawing. We will review the design and manufacturing approach and reply with a quote and lead time.
