- 01Membrane lid and separate guide plate
- 02Parachute tray and shallow piston
- 03Chamber wall, seals and guide bands
- 04Base passages, horizontal gas source and mounting
D1F installation and recovery: concept composite
The foreground shows installation; the background illustrates a separate recovery stage. This AI composite references our own CAD render. The aircraft, canopy and mounting are conceptual, not a flight photograph or deployment validation.

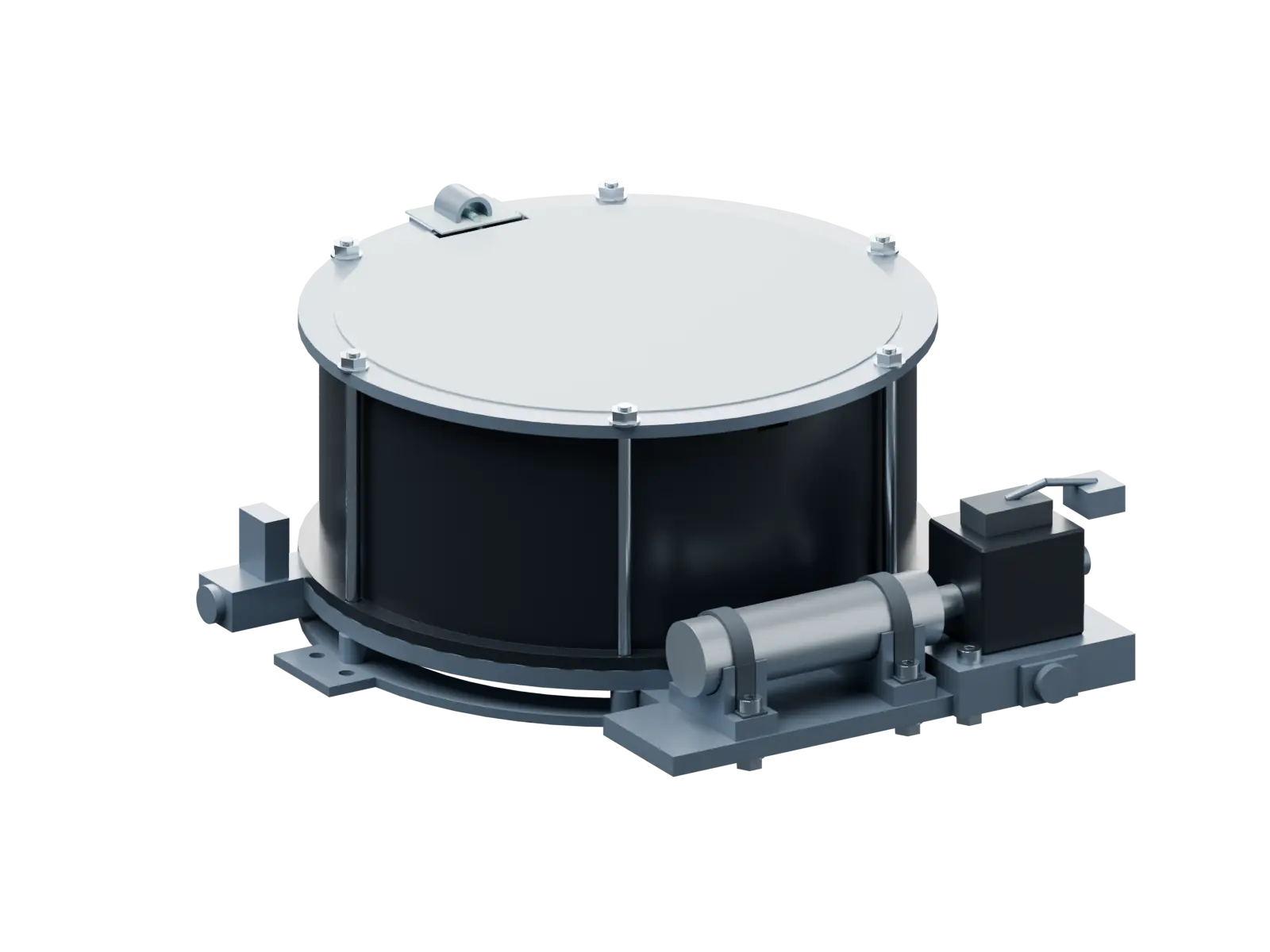

D1F is a flat derivative of the upright D1 design. A small high-pressure gas cylinder sits horizontally beside the chamber. A single normally closed main valve feeds short passages in the base to drive a circular, shallow piston and parachute tray. The low-profile arrangement supports airframe packaging and center-of-gravity studies.

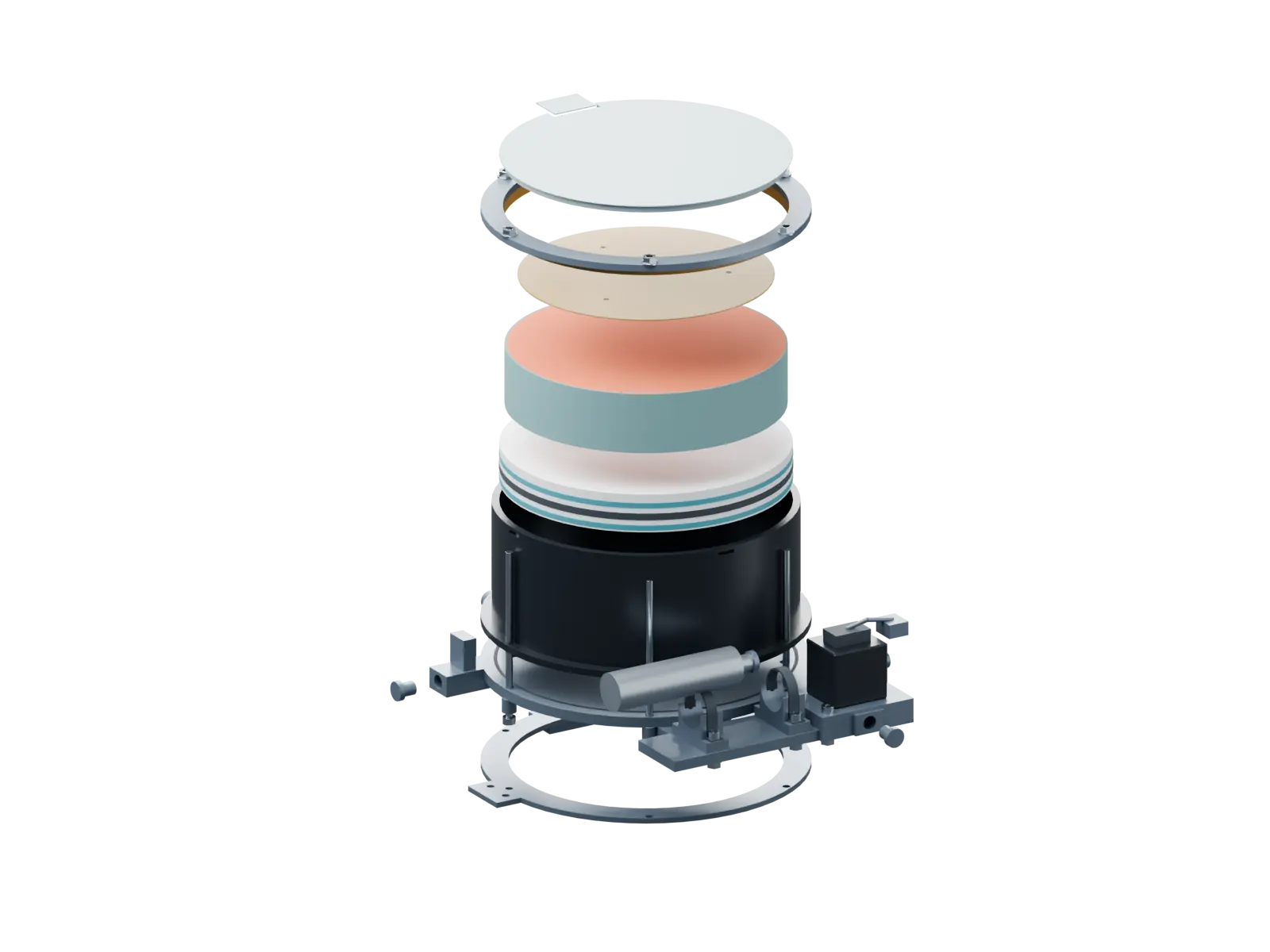

The piston remains captive, guided by sealing rings and two guide bands. The pack and a separate circular guide plate move upward as a membrane lid clears the opening. Cord routing, parachute load transfer and airframe mounting have separate interfaces, with provisions for pressure relief and servicing.
Product images and the 3D model show nominal CAD geometry; the application scene is an AI concept composite. Transparency is used only to explain the internal layout. Gas-source and valve selection, pressure containment, buffering and deployment remain unverified. Aircraft compatibility and total system weight are not yet defined.
Specs & process
- Design status
- Complete concept CAD; pressure containment and deployment not validated
- Nominal envelope
- 215 × 244 × 105 mm (CAD envelope)
- Ejection mechanism
- Ø160 mm shallow piston; 40 mm stroke and 6 mm reserved buffer space
- Gas layout
- Horizontal small high-pressure cylinder, single normally closed main valve, short base passages
- Guidance & service
- Sealing rings, two guide bands, separate guide plate, relief and service interfaces
- Adaptable
- Pack volume, airframe mounting, gas and valve interfaces; subject to validation
More in this field

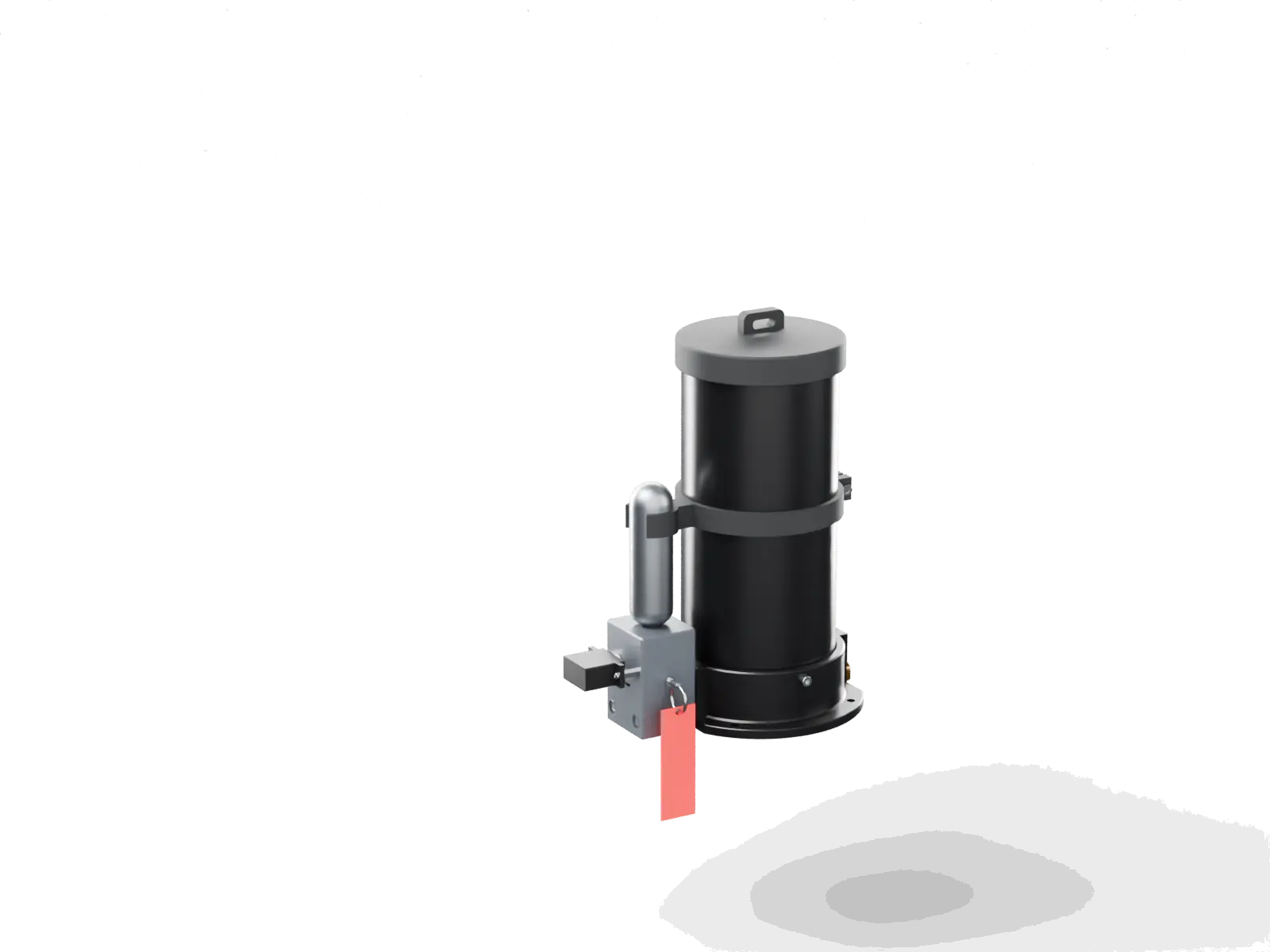

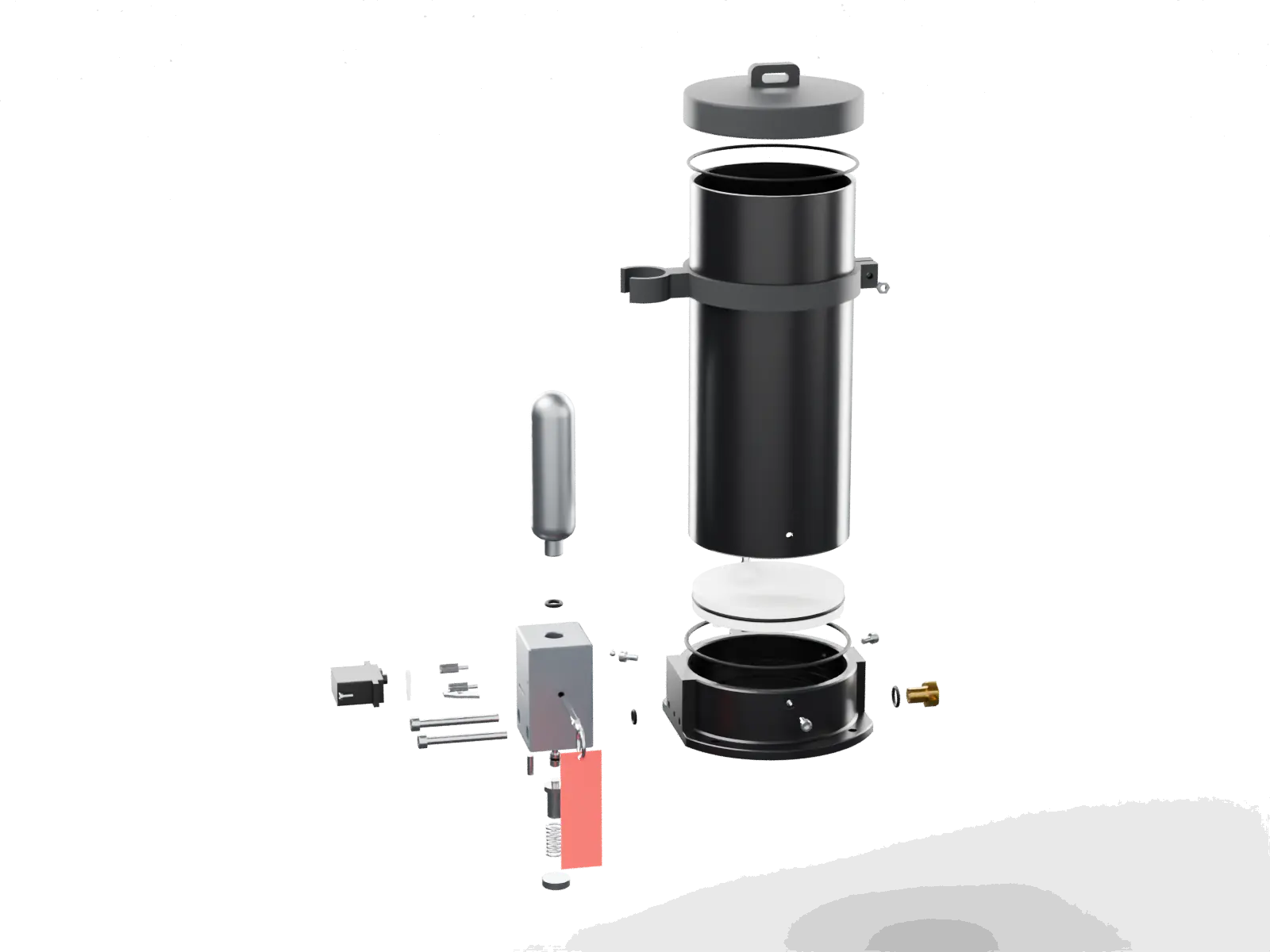

D1 · Defense / UAV
Drone parachute launcher
A parachute recovery system that uses a small high-pressure gas cartridge to push out the parachute pack. The pressure can be tuned to the payload and ejection requirements.

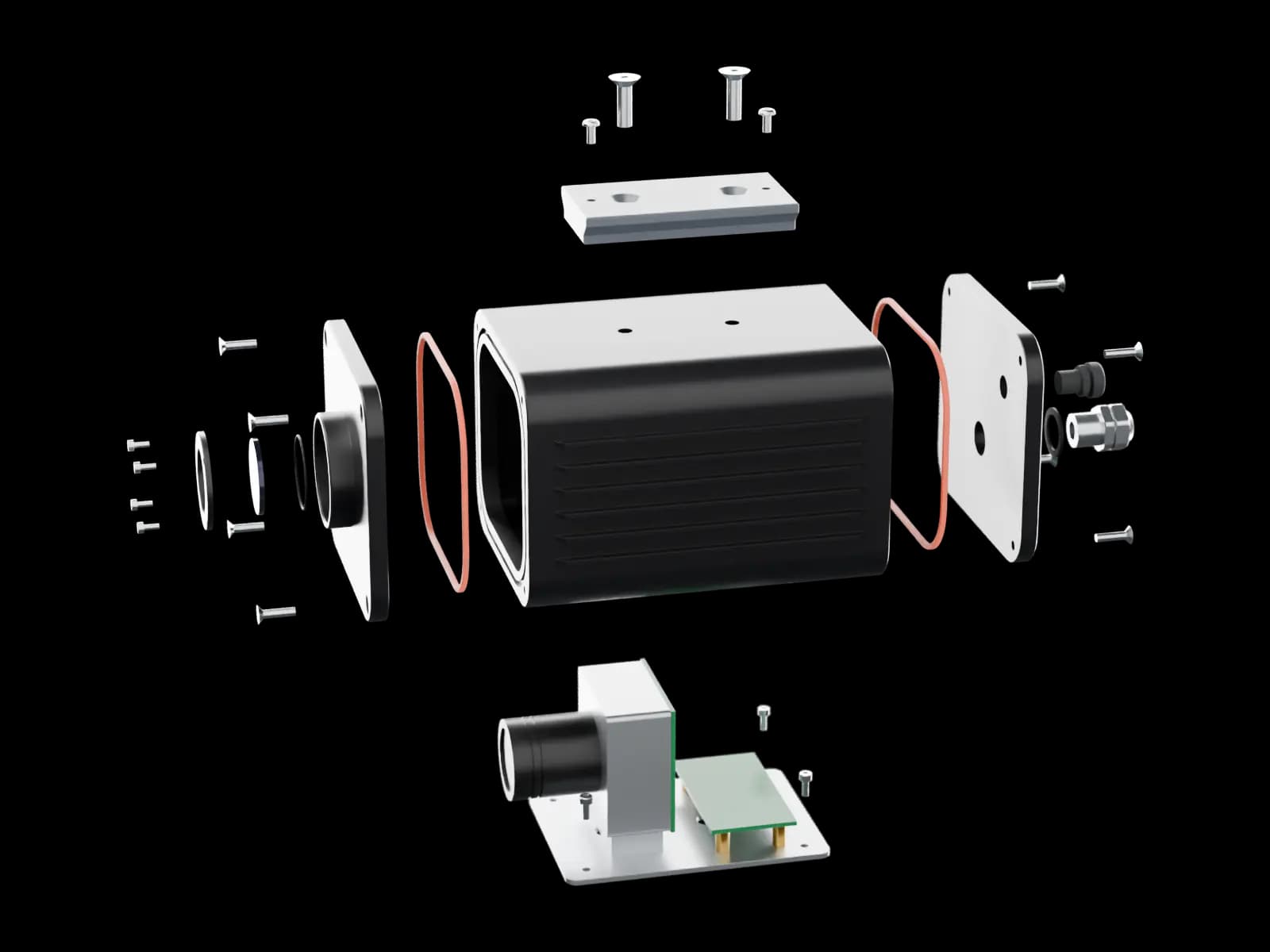

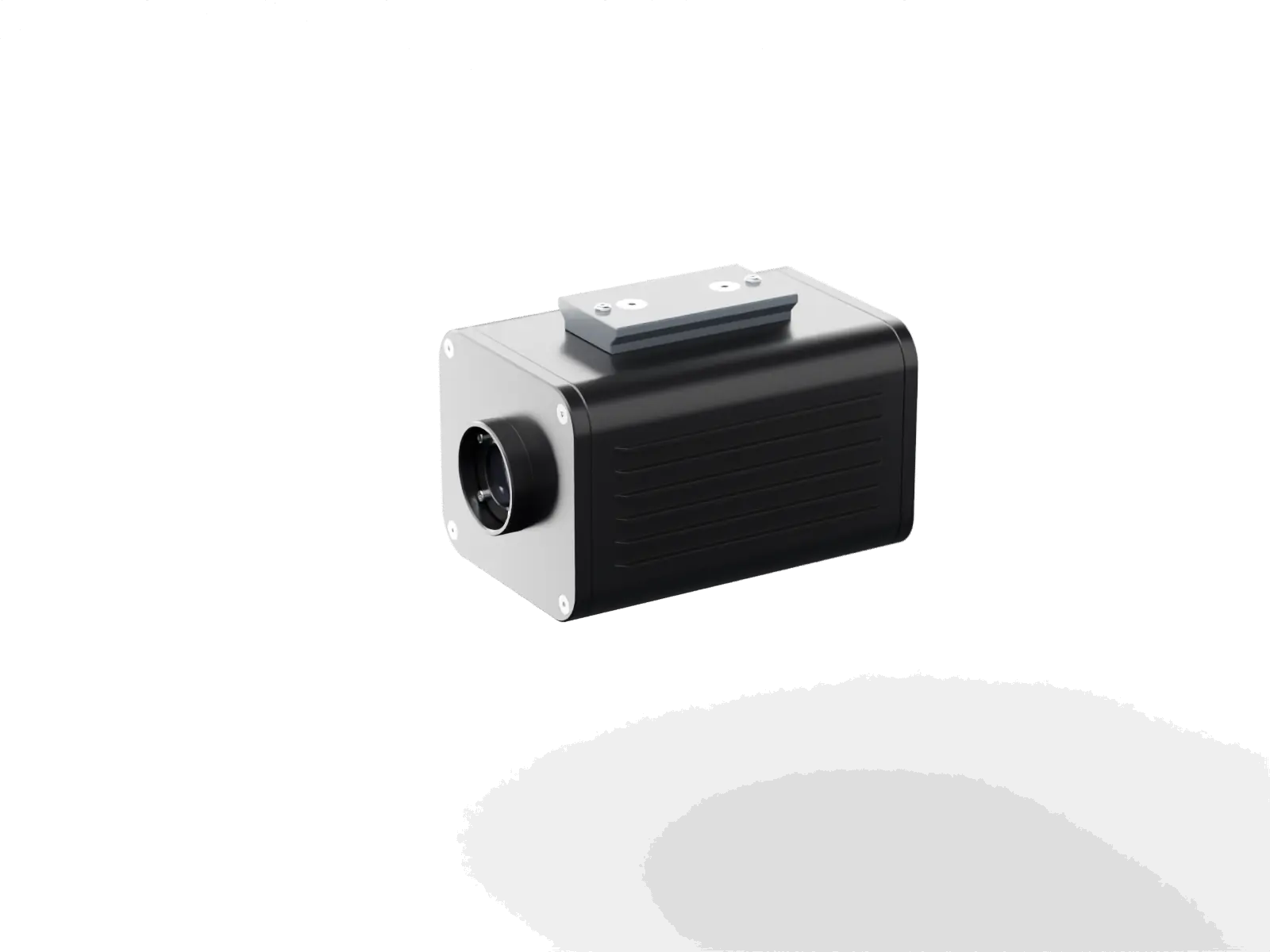

D2 · Defense / Security / UAV
Modular payload pod
One pod body with interchangeable front covers for a thermal camera, LiDAR, gas sensor or other payloads.

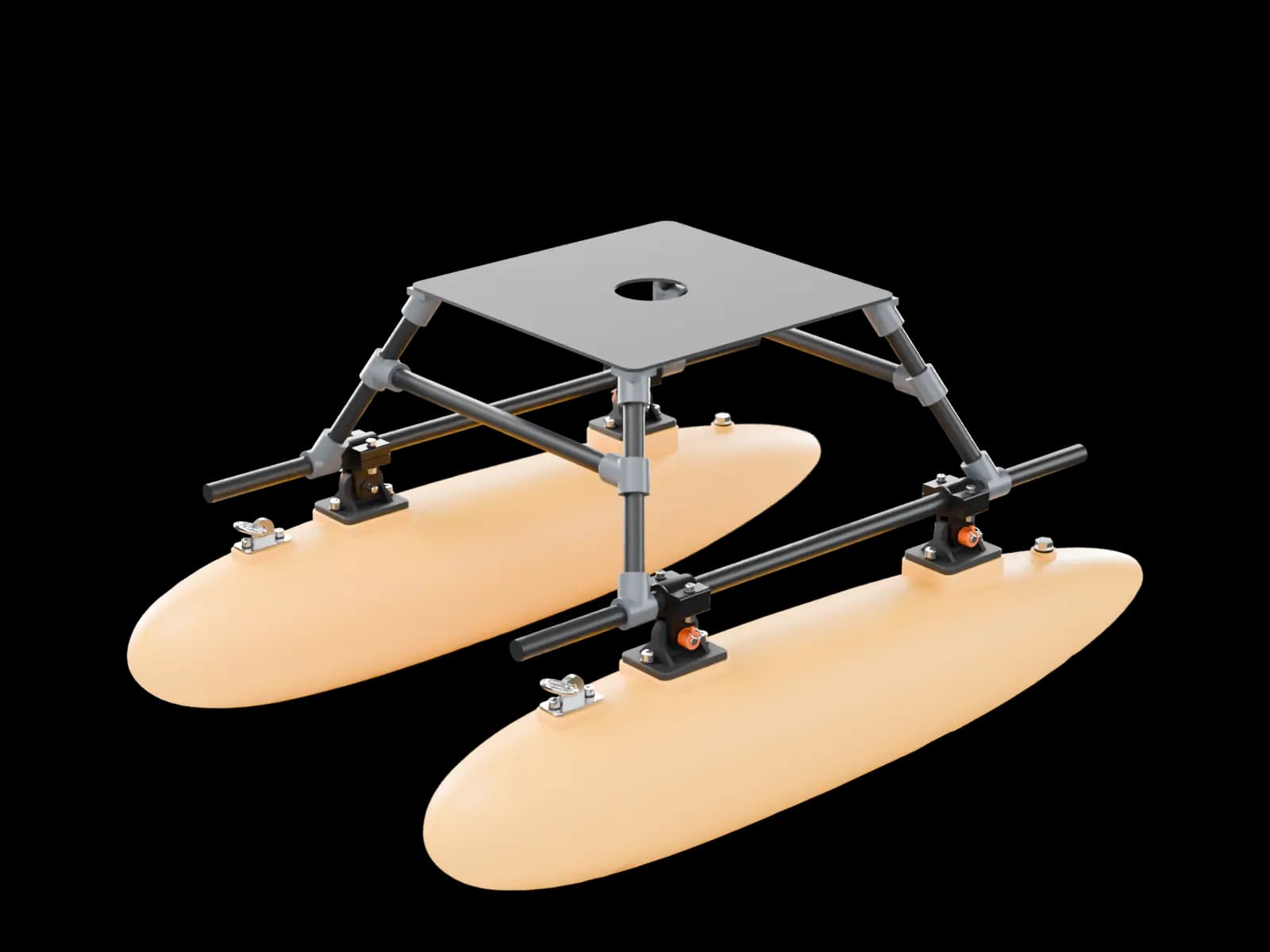

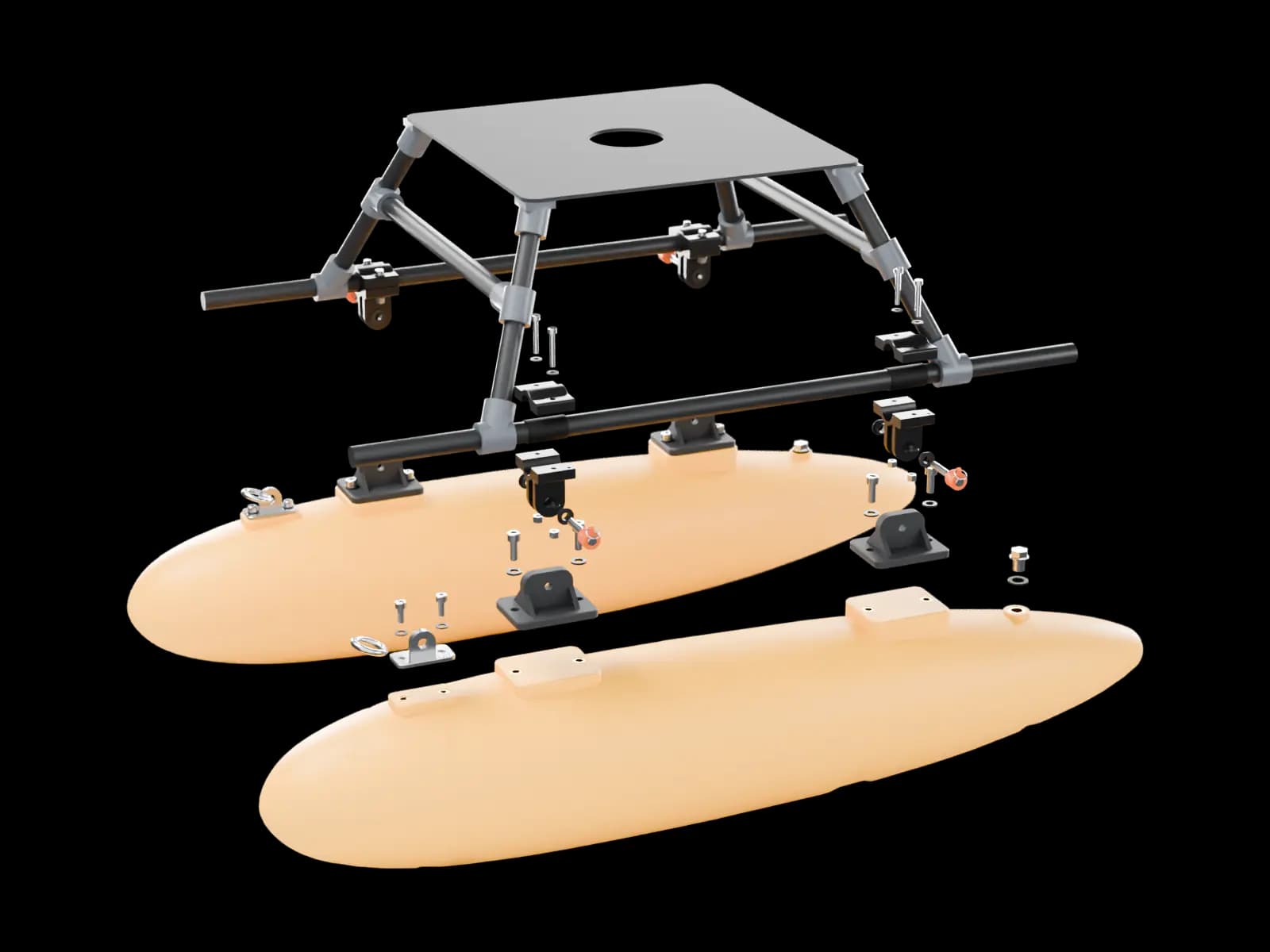

D4 · Defense / UAV / Subsea & Marine
