Red Brick Precision

W2

Dive computer

In production

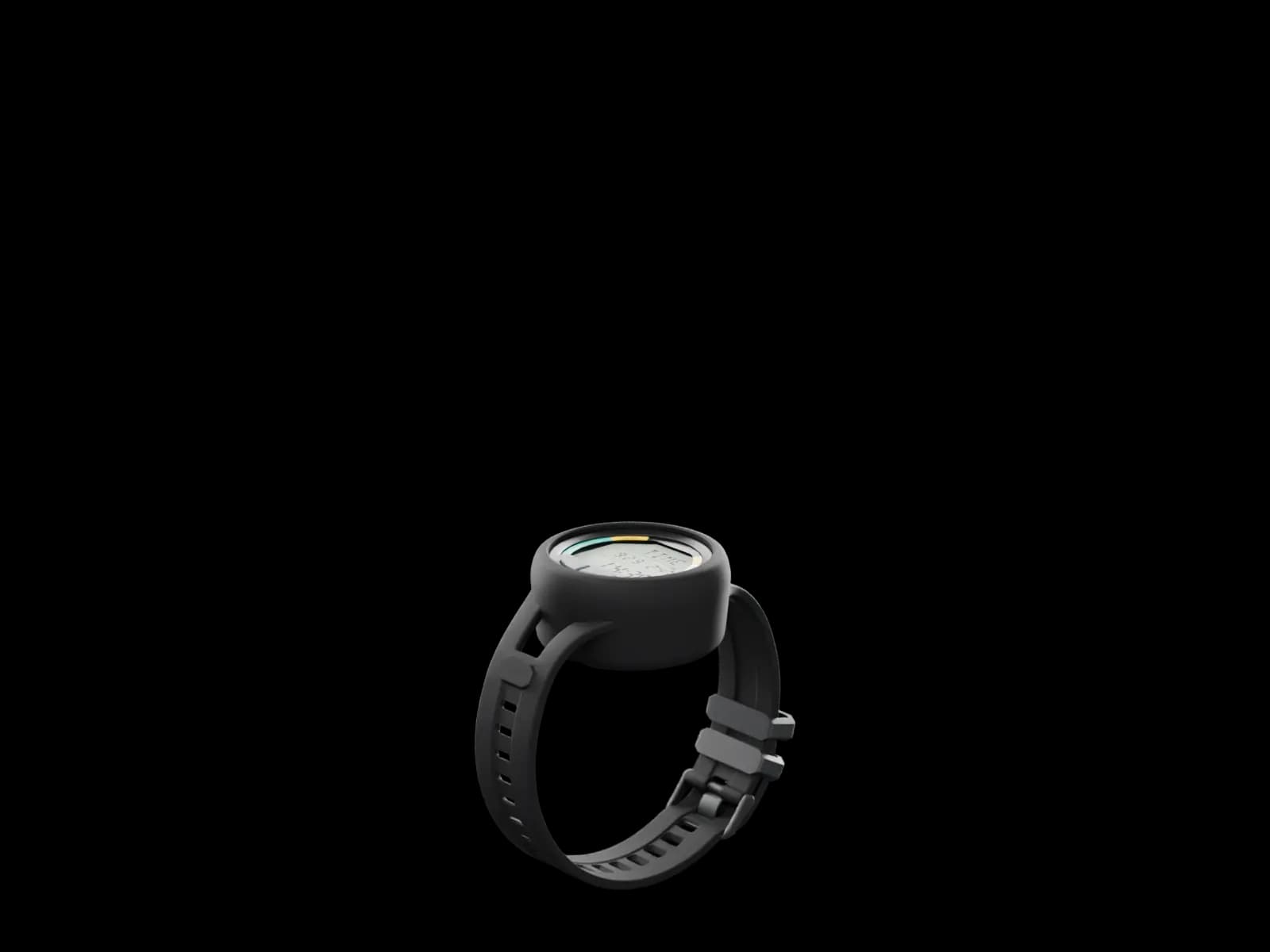

A two-button wrist dive computer rated to 100 m, with air, nitrox and gauge modes — in production and delivered.

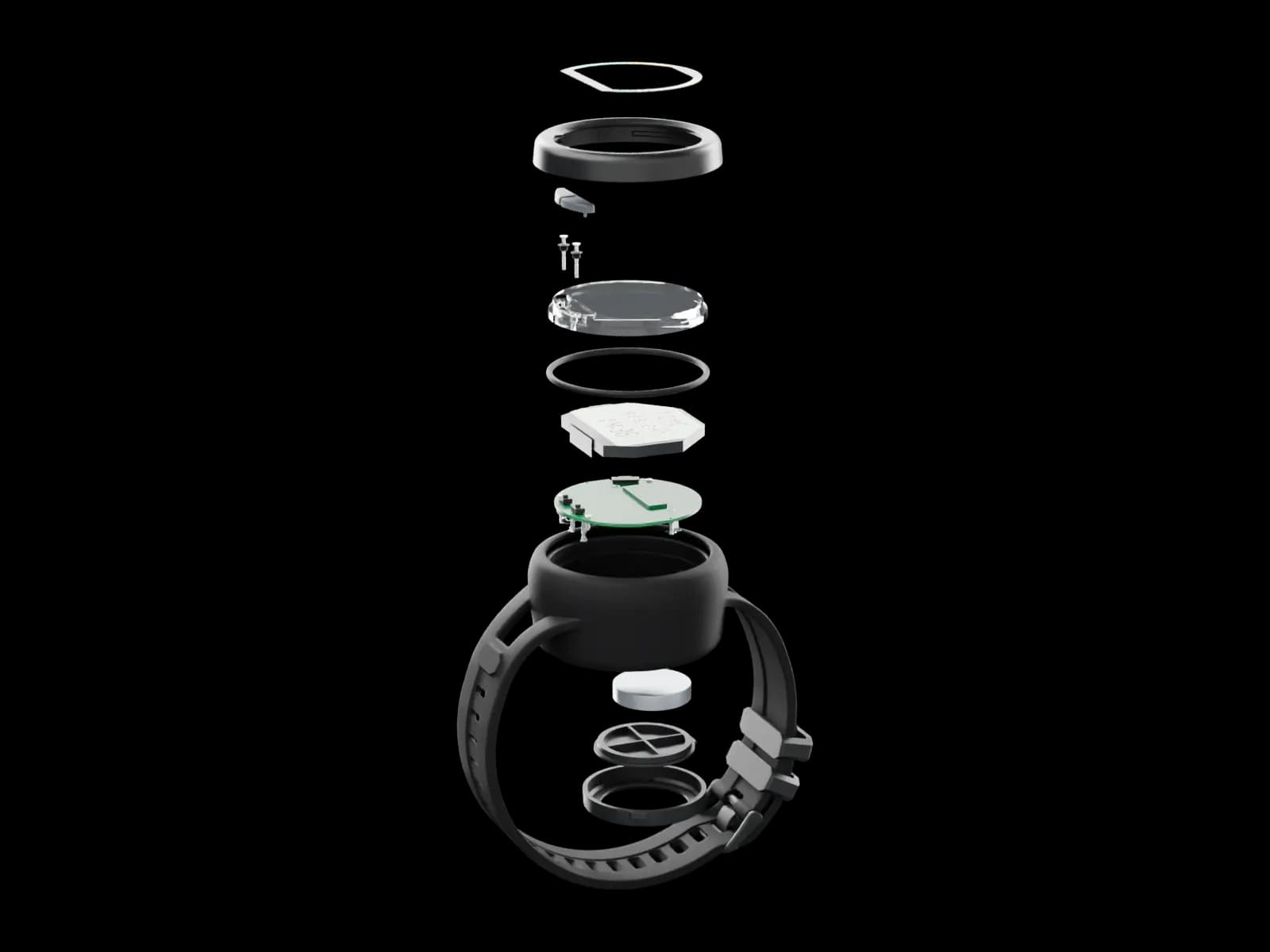

  1. 01Bezel, front window and buttons
  2. 02Display module
  3. 03Main board and buzzer
  4. 04Battery, battery cover and locking ring
Application scenario
Dive computer: Application scenario

Tracks no-decompression limits, safety stops, deep stops and decompression stops in real time using the Bühlmann ZH-L16C algorithm (16 tissue compartments), with audible and on-screen warnings when you ascend too fast. Supports air, nitrox (21–99%) and gauge modes, and shows no-fly and no-dive times after the dive.

A large segment LCD with backlight, two front buttons for every page, and automatic start on immersion. It runs on a CR2450 coin cell that you replace yourself by unscrewing the battery cover on the back; dive logs and firmware updates go over Bluetooth.

Specs & process

Water resistance
100 m (depth gauge to EN 13319)
Modes
Air, nitrox (21–99%), gauge
Decompression model
Bühlmann ZH-L16C, 16 tissue compartments
Power
CR2450 coin cell, user-replaceable
Size
56 mm diameter, 25.8 mm thick
Connectivity
Bluetooth dive-log sync and firmware updates
Adaptable
Band color, boot screen
